Retestadora de un disco para corte de tablillas para palets.
Dispone de un tope lateral escalado para el corte a diferentes medidas en un extremo, en el otro extremo dispone una sierra circular.
Con un sistema de tracción por cadenas, las tablillas son arrastradas a la sierra circular que corta las tablillas a medida.
Dispone un sistema de prensores para tablillas para que no se muevan durante el proceso de corte.
De manera opciona, se puede instalar un tramo de salida con un sustema de clasificación de las tablas con diferentes cajones de almacenaje.
Incorpora una toma para conectar al sistema de aspiración de la fabrica y evitar así la acumulación de serrin en la tolva de corte.
En el panel de control, instalamos un regulador de velocidad para poder ajustar velocidad en función del tipo de madera.



Tensión de alimentación: 390V
Produccín: 15 ciclos/m
Topes de medidas: 6
Cantidad de cajones de clasificación: 0-6
Medidas máximas de las tablas: 1300x160x25
Medidas mínimas de las tablas: 600x60x10

https://www.alosindustrials.com/maquinas/fresadora-k09a/

https://www.alos.es/shop/product/fresadora-cnc-4-ejes-b140c-8668

https://www.alosindustrials.com/maquinas/fresadora-k09e/

CNC panel saw with circular disc, designed for precise cutting and squaring of sandwich panels and technical boards.
The machine incorporates a CNC circular saw head with rotation from 0 to 90°, full control of X, Y and Z axes, and a robust structure designed for continuous industrial operation.

The machine allows longitudinal and transverse cuts, ensuring high dimensional accuracy, repeatability and clean cutting finish, even in composite materials such as GRP-PU-GRP.

It is equipped with an industrial CNC control with touchscreen, easy programming and full parameterization of cutting speeds, depths and travel paths.
The machine includes a full peripheral safety enclosure and is prepared for panel aspiration and clamping systems.

Main Technical Specifications

Working area (X × Y x Z):
3000 × 1200 x 210 mm

Cutting system:
CNC circular saw head
Fixed perpendicular cutting from 0 to 90°
Automatic height control (Z axis)

Controlled axes:
X, Y, Z and 0–90° rotation by CNC
Interpolated movements for maximum precision

Control:
Industrial CNC with touchscreen
Manual, coordinate-based and CAM automatic programming
Fixed cycle capability
Cutting speed and depth adjustment

Worktable:
Vacuum table
Optional suction cups for panel clamping

Compatible materials:
GRP-PU-GRP sandwich panels
Technical boards and composite materials

Safety:
Full peripheral enclosure
Prepared for integration of CE safety systems

Main applications:
Panel squaring and cutting
Custom cutting in X, Y and Z
Dimensional finishing after horizontal splitting

Fresadora para el mecanizado de piedras; granito, mármol etc.
Diferentes medidas y opciones están disponibles. También en mas de tres ejes.

https://www.alosindustrials.com/maquinas/fresadora-k09d/

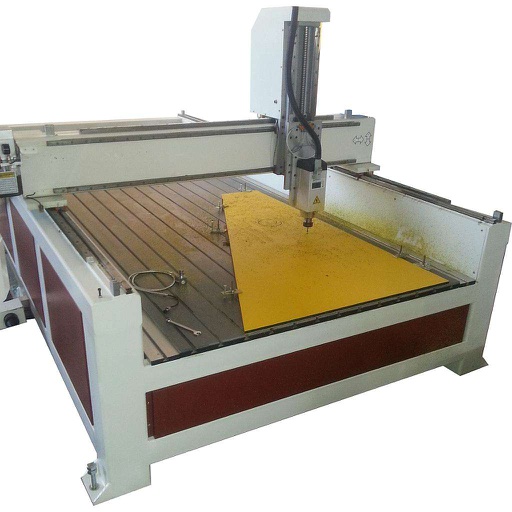

This machine is a three-axis (XYZ) milling machine. It has been specifically designed for working semi-hard materials such as expanded polystyrene.- High production, minimum maintenance.Measures: X5000 Y3000 Z1200Engine: With a hollow axis for suction 4,4KwTable: adhesive bondingNumeric control via PCEngines: Servo in every axisXY Transmission Z gear precision ball screwSpeed 15m/min

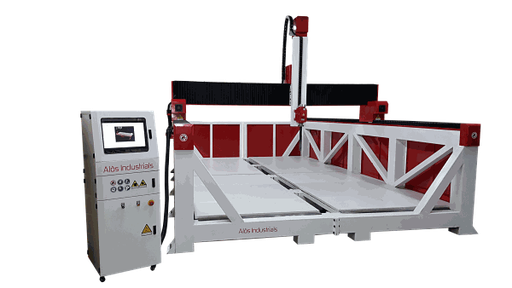

https://www.alosindustrials.com/maquinas/fresadora-k09g/

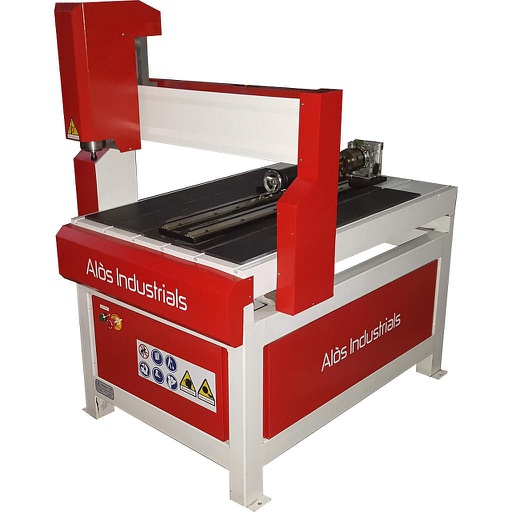

Power Supply: 1~230 Vac - 50/60 Hz - ±5%
Total Power (kW): According to chosen variant
XYZ Motors: Steppers
XYZ Reducers: Direct drive
XYZ Transmission: High-precision ball screw
XYZ Guidance System: High-precision square linear guides with ball recirculation, self-lubricating, sealed, and with no backlash.
Control System: Console (PC Option).
Interfaces: USB
Axis Motion: Interpolation of all axes.
Compatible Formats: G-Code.
Work Operations: Engraving, contouring, facing, 3D, Drilling.
Software: Compatible with any commercial CAD/CAM software.
Workpiece Cooling: Not required.
Accuracy (mm): ±0.08
Precision (mm): ±0.08
Compatible Materials: Woods, plastics, foams, and non-ferrous materials.

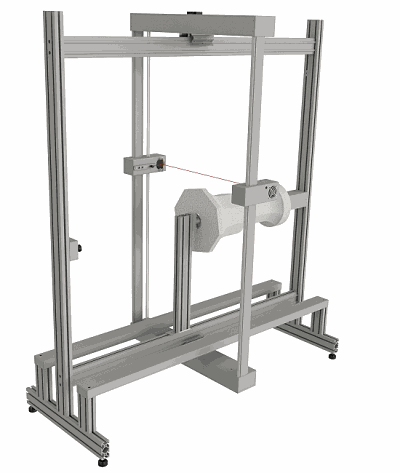

https://www.alosindustrials.com/maquinas/termocortadora-k18c/

https://www.alosindustrials.com/maquinas/termocortadora-k18d/

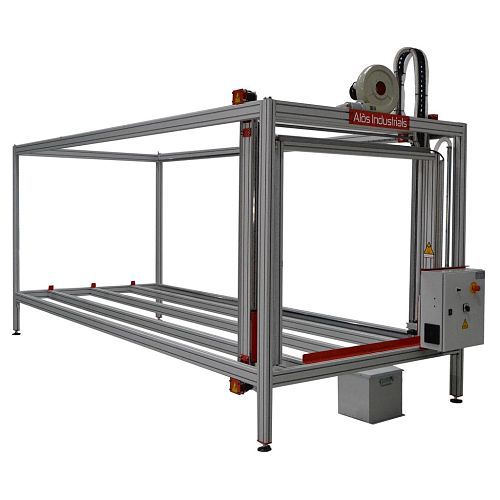

https://www.alosindustrials.com/maquinas/termocortadora-k18f/

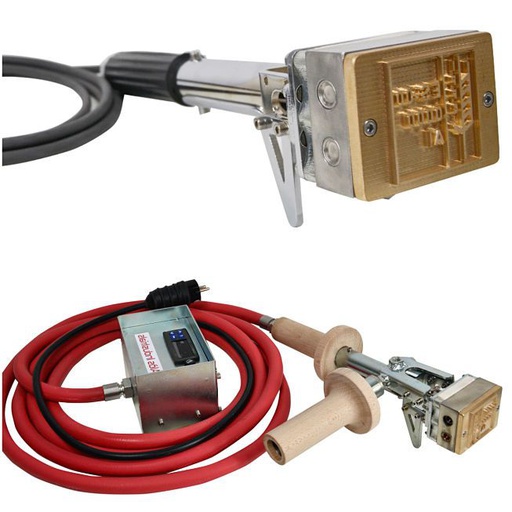

https://www.alosindustrials.com/maquinas/marcador-termico-k19a/

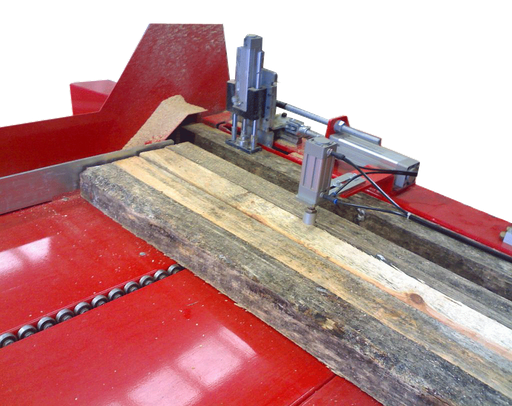

https://www.alosindustrials.com/maquinas/cortadora-de-tacos-k05c/

https://www.alosindustrials.com/maquinas/cortadora-de-tacos-k05b/

https://www.alosindustrials.com/maquinas/cortadora-de-tacos-tipo-noria/

https://www.alosindustrials.com/maquinas/cortadora-de-hilo-a10b/

https://www.alosindustrials.com/maquinas/linea-de-clavado-semiautomatica/

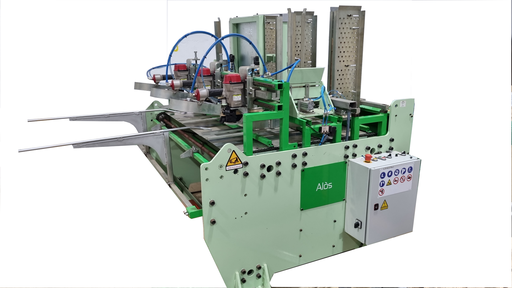

The stringer nailing machine is designed for nailing stringers used in the manufacture of four-way entry pallets. The machine is equipped with a deck board magazine and four block magazines —or three magazines, depending on the variant— in which the wooden components required to form the stringer, consisting of blocks and deck boards, are loaded.

The machine automatically and on demand picks up the wooden components by means of a feeding carriage. As the carriage moves towards the nailing guns, the guns fasten the different wooden parts together using coil nails. The nailing machine is fitted with sensors in the magazines that automatically stop the machine in the event of a lack of wood, ensuring safe and reliable operation.

In addition, the machine features a dedicated mechanical system that drives the nails diagonally into the blocks, significantly improving the strength and quality of the joint.

Manufactured from structural steel, the stringer nailing machine offers high robustness, ensuring a long service life even in demanding production environments. It also incorporates an automatic speed control system that provides smooth and controlled movement of the carriage. The machine is equipped with all necessary safety systems to allow the operator to work safely and in compliance with current regulations.
