Key Advantages and Benefits
- High cutting precision thanks to the scaled side fence and clamping system.
- ncreased productivity hrough a chain-driven feed system that ensures continuous and uniform material advance.
- Operational versatility, with adjustable speed regulation according to wood density or type.
- Reduced material waste, by ensuring accurate and repeatable cuts.
- Cleaner and safer working environment thanks to direct connection to the dust extraction system.
- Optimized production flow, with optional automatic sorting and organized storage.
- Robust construction designed for intensive work in pallet manufacturing lines.
Typical Applications
- Manufacturing of deck boards or standard and custom pallets.
- End trimming and length adjustment in pallet production lines.
- Wood processing for industrial packaging.
- Integration into automatic cutting, assembly, and pallet component sorting lines.
- Wood processing facilities requiring precise and repetitive custom cuts.
Pallet board trimmer 1 saw disc D140A
Single-blade board end-trimming saw is a machine designed for the precise sizing of wooden boards, ensuring uniformity and high productivity in industrial environments.
The equipment features graduated lateral stops located at one end, allowing the cutting length to be easily adjusted according to the different required dimensions. At the opposite end, it incorporates a high-performance circular saw responsible for carrying out the final cut with precision.
The feeding system operates by means of chain drive traction, which continuously and controllably conveys the boards toward the circular saw. To ensure stability during the process, the machine integrates a pressure hold-down system, preventing movement and guaranteeing straight, accurate cuts.

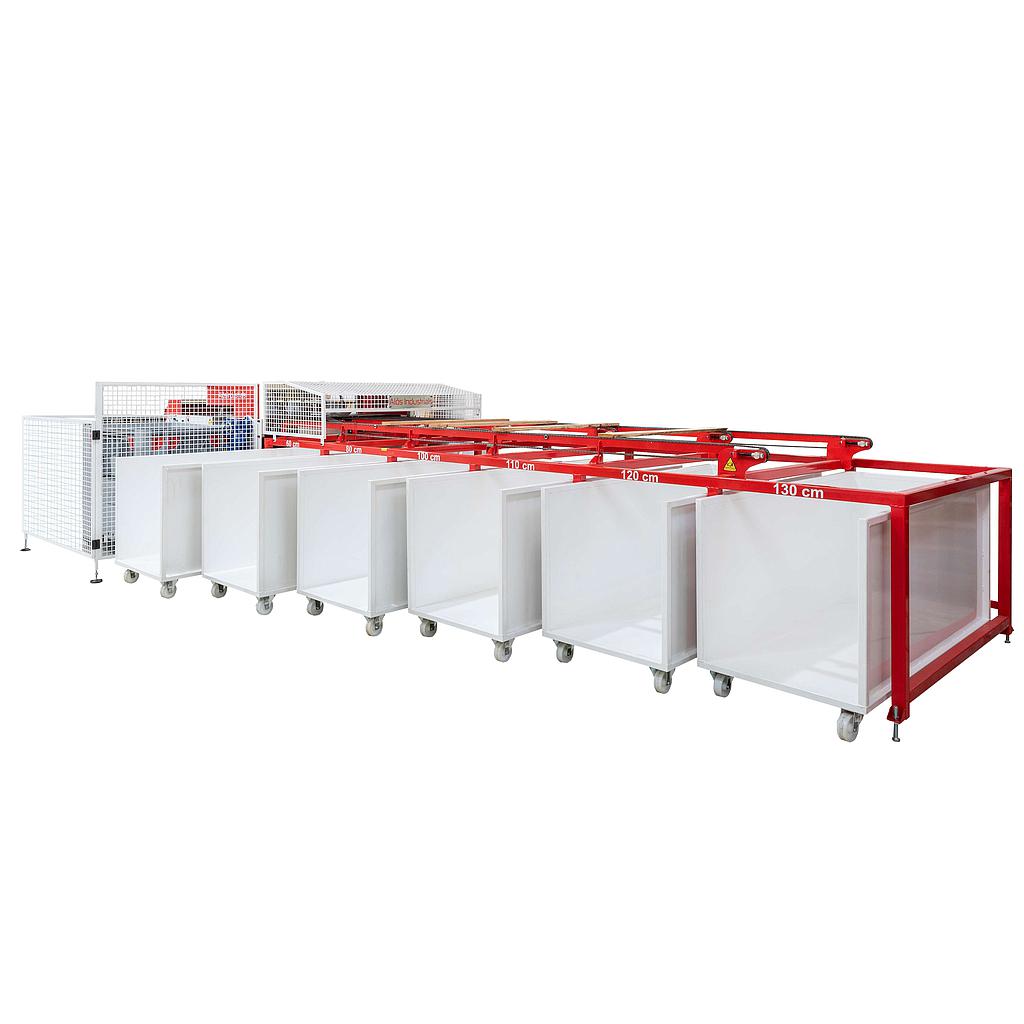

Optionally, it can be equipped with an outfeed section with an automatic sorting system, which distributes the cut boards into different storage bins according to their length.
The end-trimming saw includes a dust extraction port for direct connection to the factory’s extraction system, preventing sawdust accumulation in the cutting hopper and improving cleanliness and workplace safety.
The control panel includes a speed regulator, allowing the feed rate to be adjusted according to the type of wood, optimizing performance and cutting quality.
| Size board: 600-1300mm |
| Characteristic |
Value / Typical Range |
| Power supply |
390 V |
| Production rate | 15 cycles/min |
| Number of stops | 6 |
| Number of sorting bins |
0-6 |
| Maximum board dimensions |
1300x160x25 mm |
Minimum board dimensions | 600x60x10 mm |
