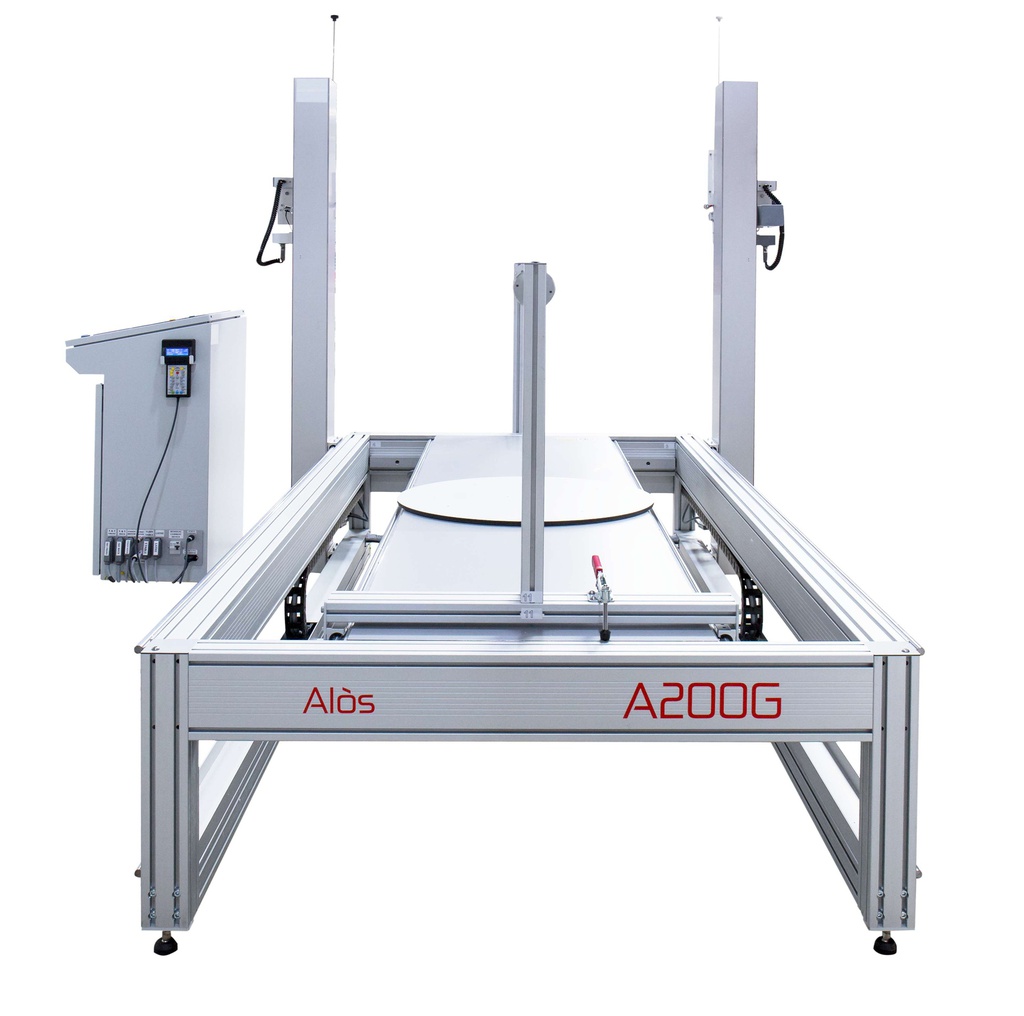

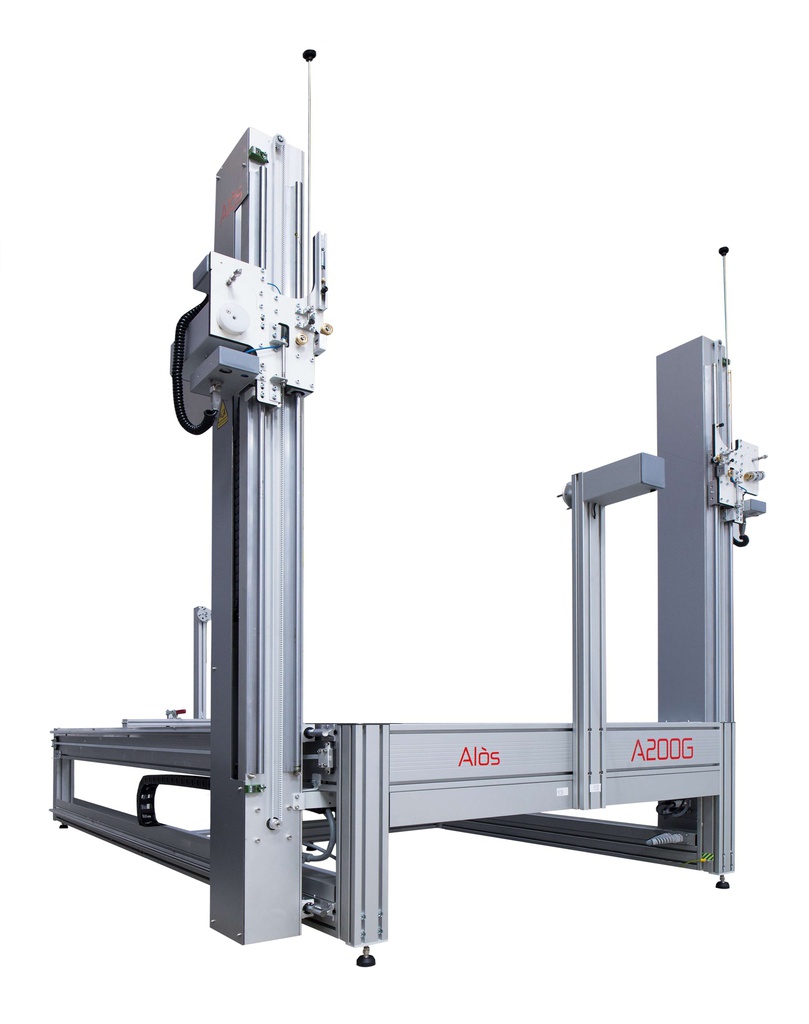

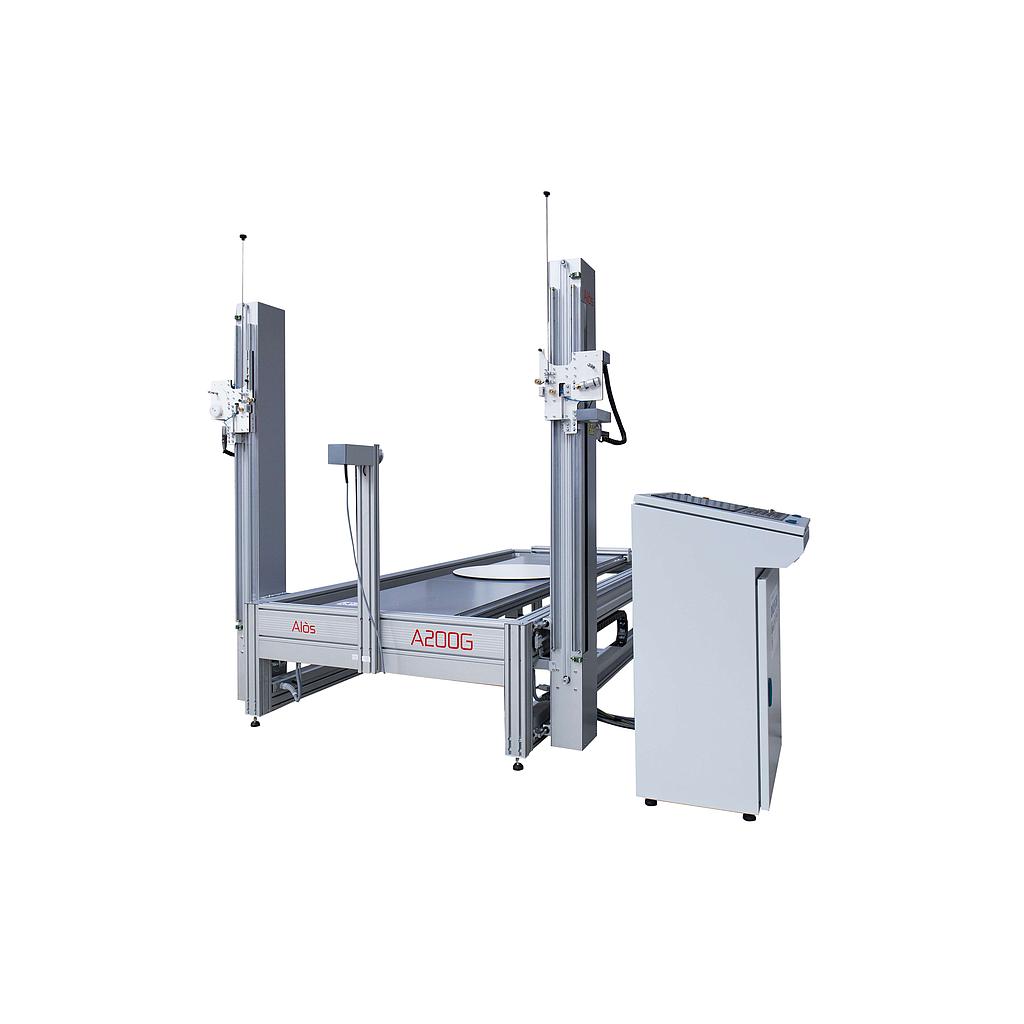

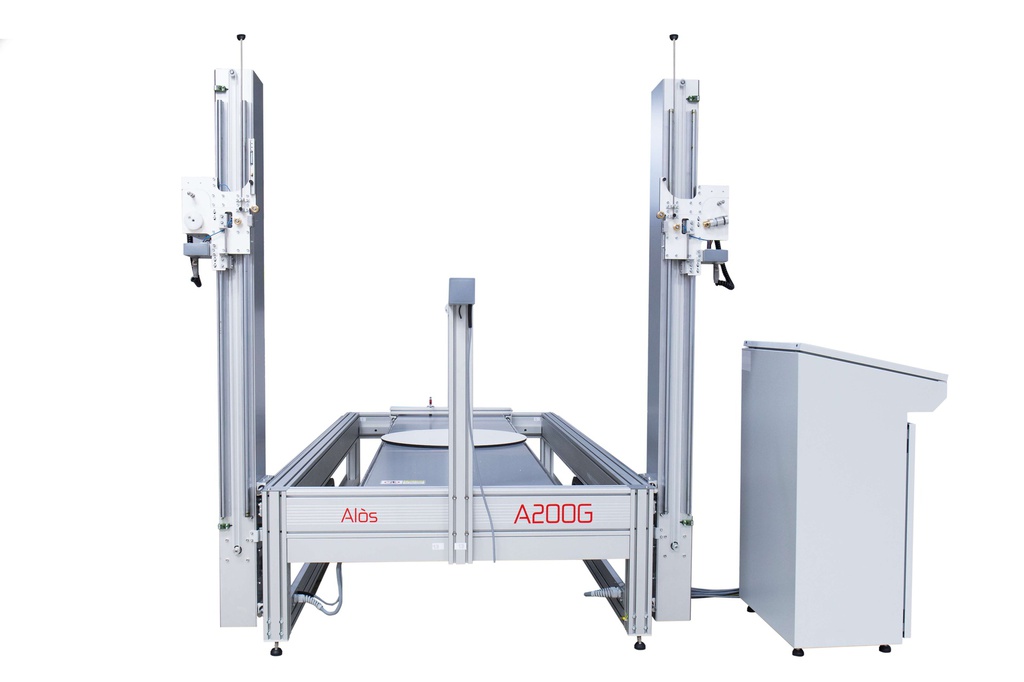

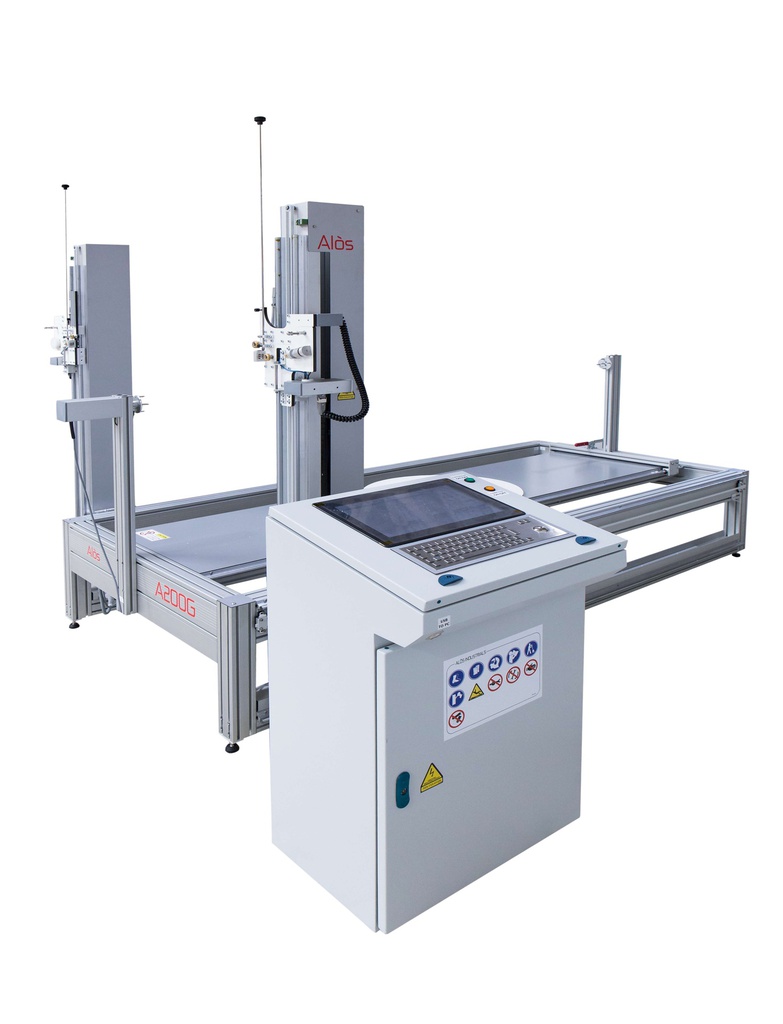

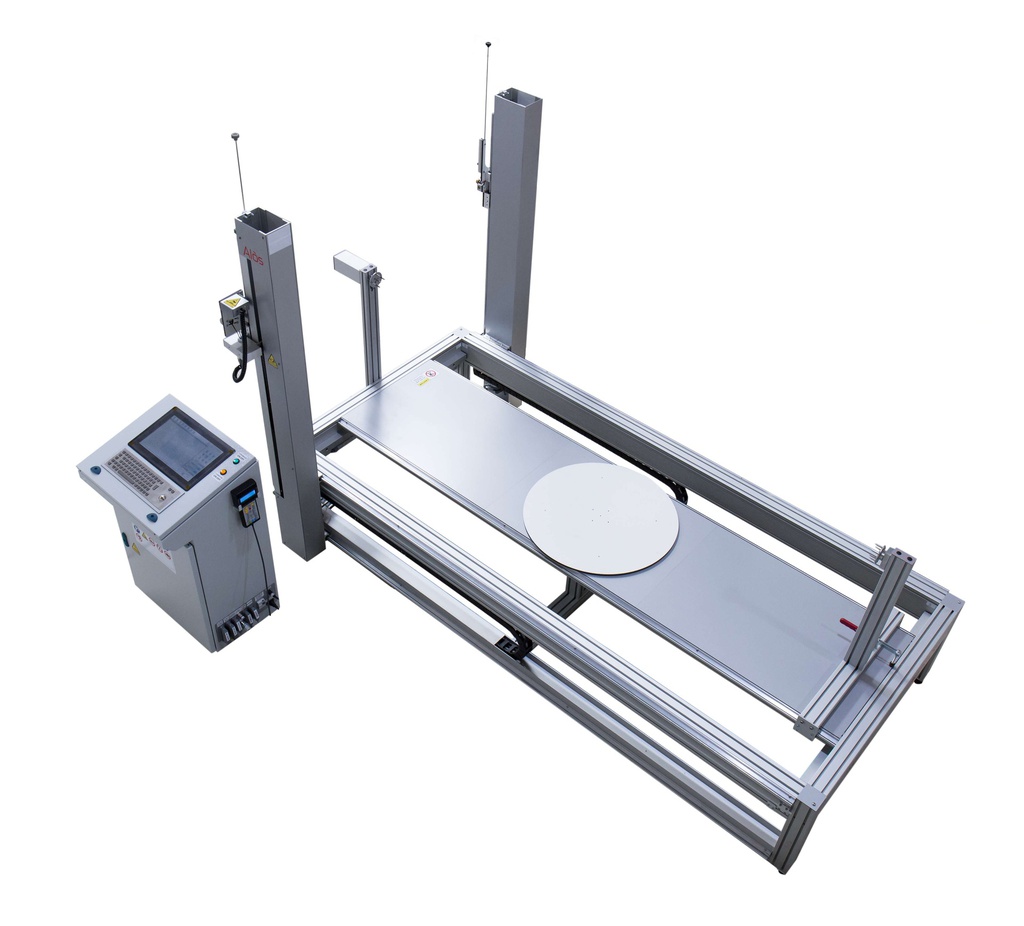

Hot wire foam cutter A200G

    This combination does not exist.

    Buy Now

    30-day money-back guarantee
    Free Shipping in U.S.
    Buy now, get in 2 days



    • New "2020" series with a beautiful totally new design.

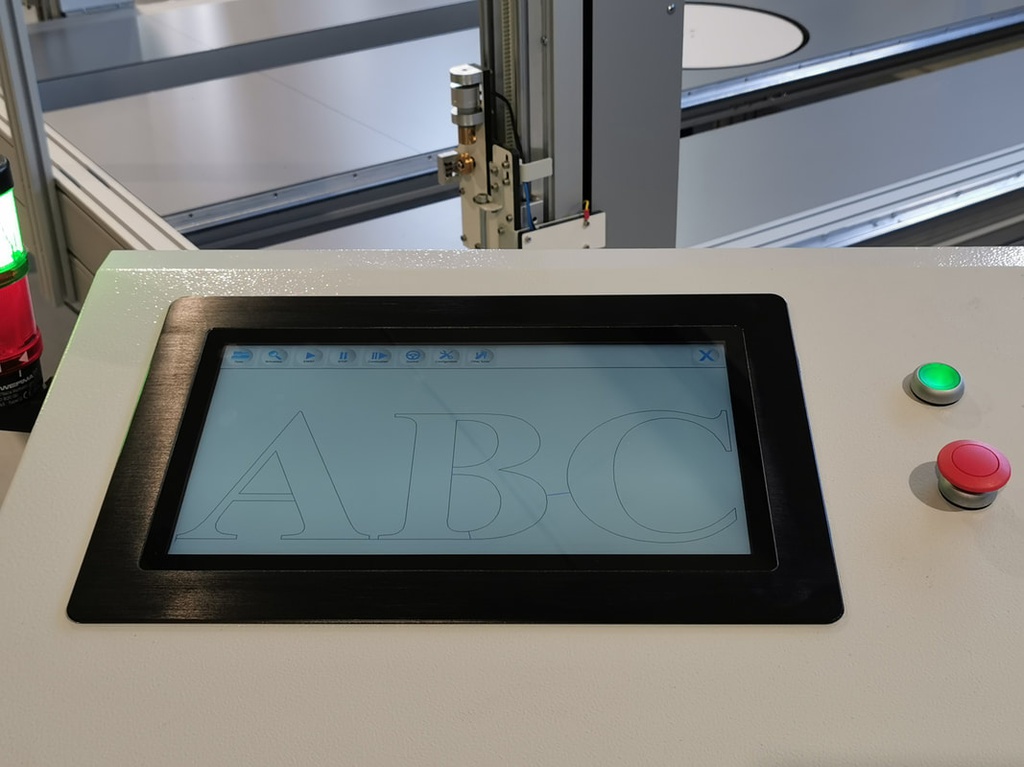

    • Industrial PC with touch screen and integrated Windows 10.

    • Unique independent axis control function.

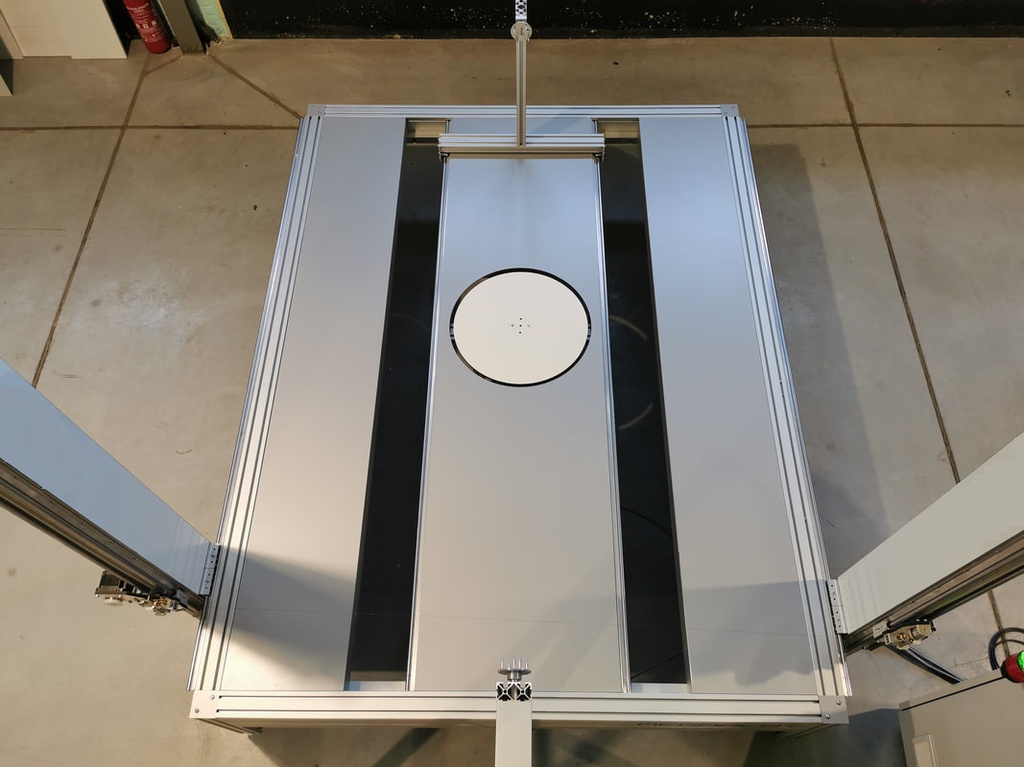

    • Multiple 3D options: rotary tables, lathe, form tool.

    • Quality and CE guarantee.

    • Backed by over 25 years of manufacturing experience.

    Technical characteristics

    Total measurements (mm) According to the chosen variant
    Software iXshaper
    Total power (kW) 1
    Accuracy (mm) ±0,001
    Weight (kg) According to the chosen variant
    Precision (mm) ±0,001
    Machine lubrication system Not required
    Resolution (mm) ±0,001
    Protection systems According to the chosen variant
    Control system Numerical control console
    Noise level (dBA) According to the chosen variant
    Axis movement Interpolation of all its axes
    Supply voltage 1~ 230 Vac - 50/60 Hz - ±5%
    Supported formats plt, dxf, EPS/AI, RAW 3D, stl, HPGL
    Operating temperature (ºC) -5 - 45
    Supported materials EPS (Expanded Polystyrene)
    Relative air humidity (%) 0 - 85
    Work features Engraved, Profiled, Planned, 3D, Drilled
    Pneumatic feeding According to the chosen variant
    Maximum speed (m / min) 5
    Material loading zone On all four sides
    Wire diameter (mm) 0,25 – 0,6
    Structure Anodized aluminum
    Y axis height (mm) Y1220
    XY Engines Stepper motors

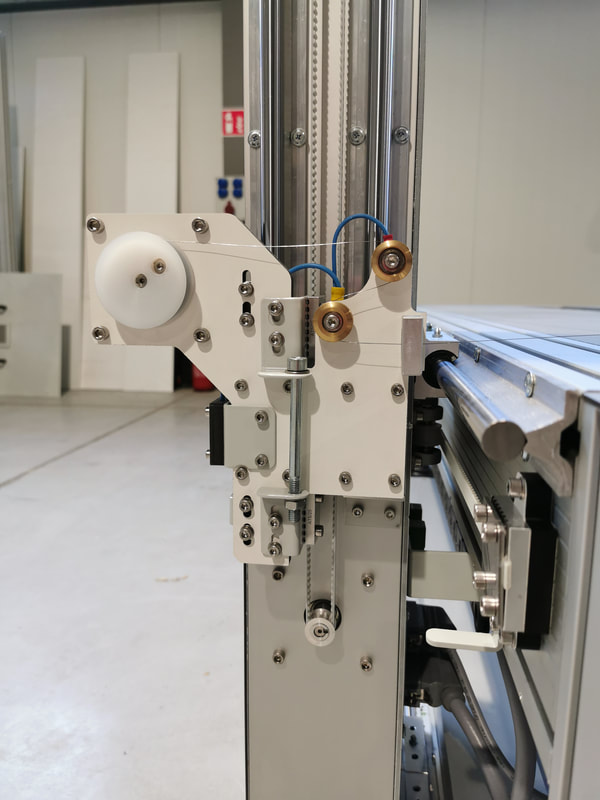

    Wire tension Spring, electric, pneumatic
    XY Reducers Direct streaming
    Number of wires 1
    XY transmission Synchronous strap
    Hot wire temperature (ºC) 0 - 800
    XY guidance system High precision square linear guides and ball recycling, self-lubricating, watertight and without play
    Wire length (mm) Width Z
    Interfaces USB
    Design software Not included
    Operating system Windows
