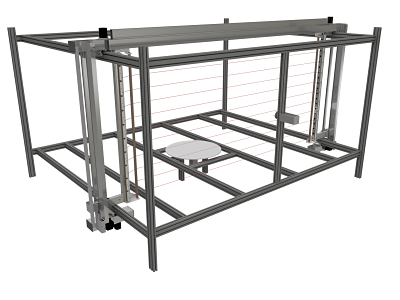

Hot wire foam cutter A200D
https://www.alosindustrials.com/maquinas/termocortadora-k18d/
30-day money-back guarantee
Free Shipping in U.S.
Buy now, get in 2 days
The A200D Thread Heat Cutter is especially recommended for those planning to start a mass production of architectural and decorative elements.
This hot wire machine can handle up to 10 wires cutting identical shapes simultaneously, significantly reducing the time required to produce large quantities of identical shapes.
The maximum number of cutting wires is 10 (can be expanded to 20), but depending on the project, the operator can choose to use 1, 2, 3, etc.
Higlights
Capacity for 10 cutting wires, expandable to 20 wires according to variant
Configurable for different work areas
Quality and CE guarantee
Technical characteristics
| Working height (Y axis) | 1230mm | Interfaces | USB, Ethernet | |
| Total measurements (mm) | According to chosen variant | Operating system | Windows | |
| Total power (kW) | 4 | Software | iXshaper | |
| Weight (kg) | According to chosen variant | Accuracy (mm) | ±0,001 | |
| Machine lubrication system | It is not required | Precision (mm) | ±0,001 | |
| Protection systems | According to chosen variant | Control system | Numerical control console | |
| Noise level (dBA) | According to chosen variant | Axis movement | Interpolation of all its axes | |
| Supply voltage | 1~ 230 Vac - 50/60 Hz - ±5% | Supported formats | plt, dxf, EPS/AI, RAW 3D | |
| Operating temperature (ºC) | -5 - 45 | Supported materials | EPS (Expanded Polystyrene) | |
| Relative air humidity (%) | 0 - 85 | Job operations | Engraving, profiling, planning, 3D, Drilling | |
| Pneumatic suply | According to chosen variant | Maximum speed (m / min) | 2 | |
| Material loading area | On all four sides | Wire diameter (mm) | 0,25 (Z1300, Z1500), 0,45 (Z2500), 0,55 (Z3000) | |
| Structure | Anodized aluminum | Wire tension | Spring, Pneumatic | |
| XY motors | Stepper motors | Number of wires | 1 - 10 | |
| XY Reducers | Precision Helical Gear and Belt Reducers | Hot wire temperature (ºC) | 0 - 800 | |
| XY transmission | High precision helical ground gear and rack | Wire length (mm) | Z width | |
| XY guidance system | High precision square linear guides and ball recycling, self-lubricating, watertight and without play | |||
Options
Computer with USB port
Pneumatic thread tensioner (Standard for Z2500)
Spring-loaded wire tensioner
Electric thread tensioner (Standard for independent arms)
Remote control
20 cutting wire capacity
Alta producción
Fácil instalación
Últimas tecnologías
Variantes disponibles
Este tipo de máquina está disponible con una combinación entre las diferentes dimensiones disponibles de ancho y largo de la máquina.
El ancho de la máquina (eje Z) es igual a la longitud del hilo y está disponible en los siguientes tamaños:
- 60 cm
- 130 cm
- 150 cm
- 250 cm
- 300 cm
La longitud de la máquina está disponible en las siguientes dimensiones:
Variante | Longitud de la máquina (eje X) |
| Pequeña | 122 cm |
| Intermedia | 244 cm |
| Grande | 305 cm |
Accesorios
para complementar su Cortadora de Hilo Tipo D
Mesa giratoria
.
Herramienta de forma
Tensor neumático
Consumibles
Aplicaciones
Laminadora de bloques
La máquina está especializada en el laminado de bloques de EPS para la producción en serie, corta en láminas exactamente iguales produciendo un gran rendimiento.
